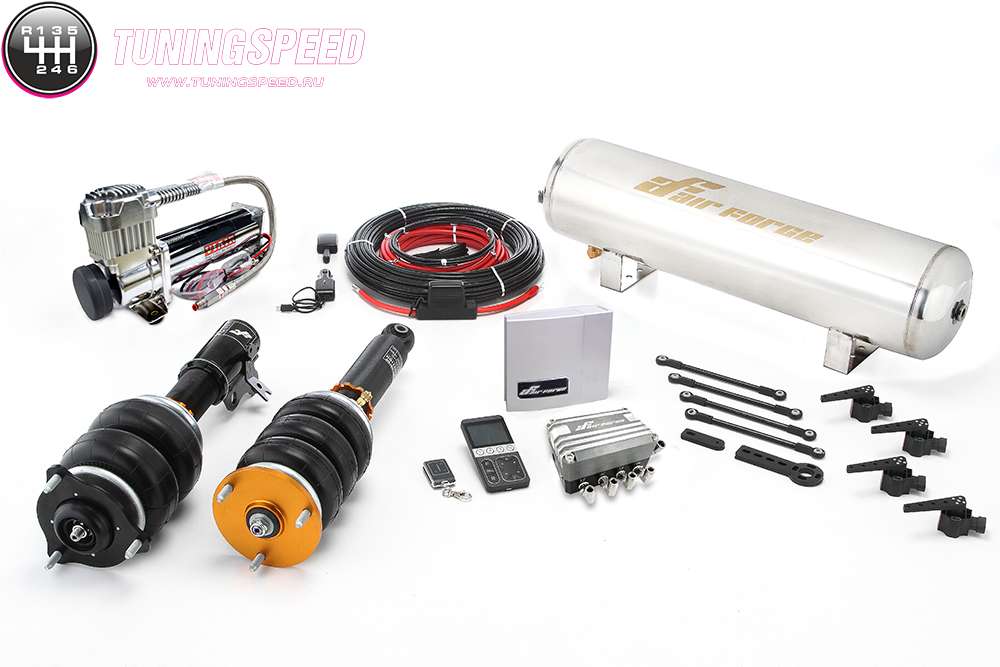

Airforce Air Suspension Gold

The remote control monitor of Gold type will be supplied with height sensor kit. This system can adjuste the ride height more sophisticatedly with IC programs which is not the same as other normal air suspension to adjust the ride height by air pressure. This system will measure and record the desire ride height accurately and depend on your setup to adjust the ride height while driving. In addition, the ride height won’t influence by any unpredictable factors, so you don’t need to worry about wear down of tires or conflict with the car body. It is a reliable digital ride height control system.Due to the easy installation, the height sensor kit just needs to bolt on the vehicle, the linkage kit should be attached on the lower control arms and then install the wire kit to complete the installation.
This is a complete kit with the most excellent damping setting to match up properties of pneumatic springs in order to increase the vehicle’s stability, unlike other brands come with non adjustable shock absorbers which cause the vehicle to be bouncy and unstable during cornering. Besides, modifying upper mounts, cutting car body or welding the OEM shock to the vehicle are not required when installing our products.
Not only is this system allowed to change air pressure, but you can also adjust the maximum and minimumride height freely to match up a body kit to get the desired ride height, which is one of our products features that other brands do not have.
Free upgrade with APP Bluetooth Receiver to set up your desired ride height.
It is dedicated for iOS system.

This product includes a full set of shock absorbers. It is at your option to replace air bags with 4 x coilsprings to make a full set of shock absorbers once an air management system is not fitted. (PS. The high performance shock absorbers supplied with this kit are damping and ride height adjustable).
This system is designed for easy bolt-on so it is not required to work with the O.E.M shock absorbers.
This system has 36 levels of adjustable damping, ride height adjustable, including upper mount in the fronts and rears. The standard setting of McPherson strut is rubber top mounts, but you can choose to change the Pillow ball top mount to have ability for adjusting the camber degree.
You can choose the types of top mounts freely such as pillow ball top mount, aluminum top mount, rubber top mount, and rubber with pillow top mount.
A tire pressure gauge can be connected to the air tank to fill your tires; the air pressure in the tank is sufficient for the tire pressure gauge.
A pneumatic tool can be connected to the air tank as well to clean the exterior of your vehicle, the air pressure in the air tank is sufficient for the pneumatic tool.
You can adjust the ride height with such ease while in the car. The ride height can be adjusted all the time to reach your desired height depending on the load of your vehicle.
This kit supplied with a pressure gauge, you can easy to know the ride height in the car, and also adjusting the vehicle ride height is allowed when the vehicle is in motion.
The adjustment range of ride height is between 0 – 120/200mm. (based on different applications)
The speed of lowering and raising vehicle ride height is 2-5 seconds only.
This kit comes with 8 x solenoid valves and 2 x remote control which allow you to adjust the ride height while in or out of the car.
AFH wireless memory remote control can display the air tank and front/rear pressure value. It will automatically modify the value while driving.
There is no complex wire setting; Fast installation within 2 hours.
This kit comes with two remote controls, one is with AFH wireless memory remote control and the other is simple version.
The additional function for this system is to display, show-off or hookup.
The high performance shock absorbers supplied with this kit has 36 levels of adjustable damping, and the damping is set up specifically.
The remote control is available for 4 ride height memories.
Warning signal for deficient tank pressure on remote control.
The remote control can memory for engine start and automatically orient ride height on remote control.
Wire setting easy for installation and only need to connect the affirmative and negative electricity.
All parts are collected in the monitor box (as attached) so you won’t see messy wires and parts.
One touch function. Simply by one press, and you can reach your desired ride height. (In previous version, you need to press the buttons for a long time and caused bad connection.)
Power save device (sleeping mode).
Battery change unnecessary (charged by USB).
Function setting for speeding and exhausting.
All applications listed on our website are for 2WD model unless we specify 4WD.

Warranty
Shock absorbers, compressor, air bag has one year limited warranty. We authorize a well-known brand’s OEM factory to manufacture the electric control box and remote control. It’s been through testing around 6 months, we are confident with the quality, but if there is any break-down for the parts, customers must send back to Taiwan for repairing. (It’s a common warranty for all electric products). After inspecting, if the break down is caused by flooded or throwing down heavily, it won’t be under warranty.
